Universal Connection Kit 5

Installing smart in-wall switches and dimmers behind your switch can be quite a challenge, especially if you have limited space in your junction box and the wire is stiff. Additionally, the screw terminals on these modules are often only suitable for a maximum of 1.5mm², making it difficult for your standard 2.5mm² wire to fit properly.

Make it easy for yourself with a universal connection kit from Home2Link. This kit includes flexible installation wire, equipped with insulated ferrules and foldable Wago connectors for a solid connection. We only use high-quality materials, such as harmonized Lapp Cable H07V2-K 90°C installation wire and Klauke insulated ferrules according to DIN standards.

Another advantage is that you don’t have to buy 10m of cable in different colors and 10 connectors all at once.

WARNING: 230V is dangerous and can be fatal! Always turn off the main switch when working on electrical systems. If you are not knowledgeable about electricity, leave it to a qualified electrician.
The maximum load (including for your switch) is 10 Amps, max 2300 Watts. Your wall switch may have a lower maximum load capacity.

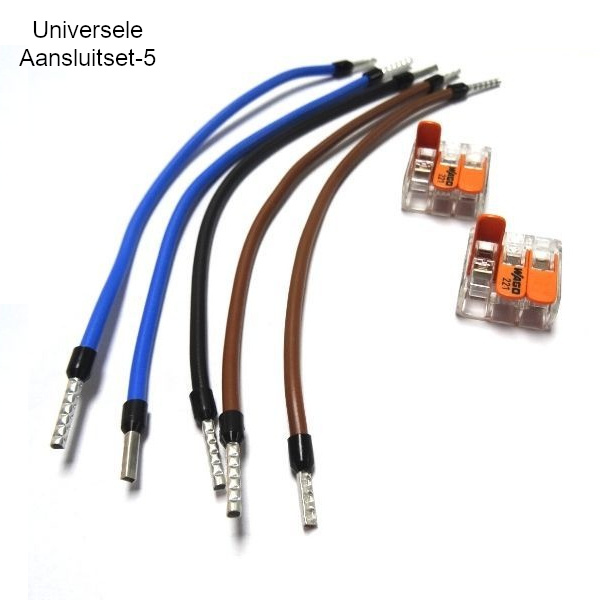

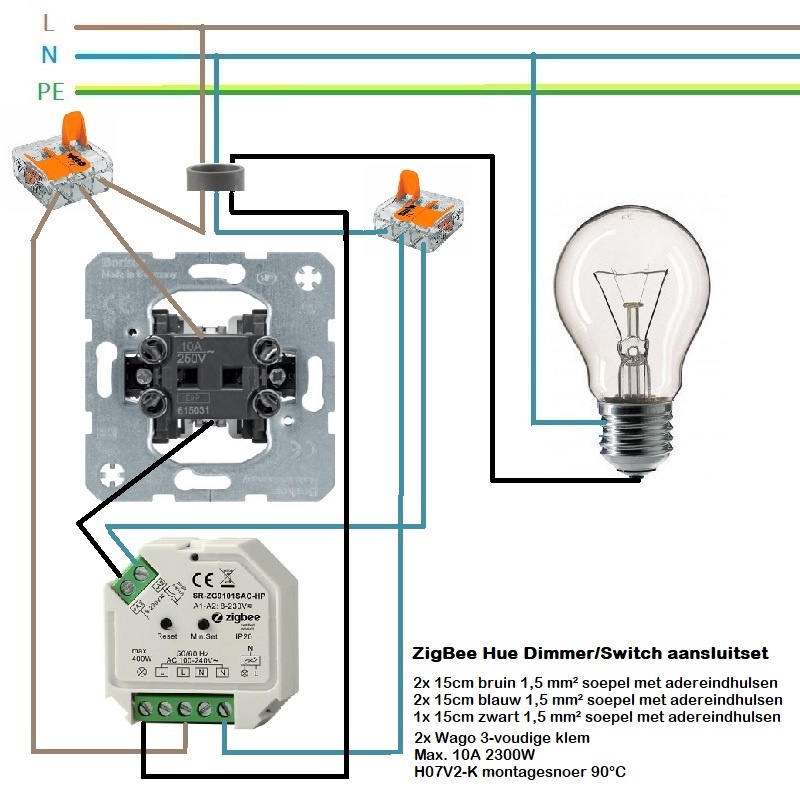

The universal connection kit 5, for example, is ideal for in-wall modules that also require a blue neutral wire, and includes:
- 2x 15cm Blue 1.5mm²
- 2x 15cm Brown 1.5mm²
- 1x 15cm Black 1.5mm²
- 2x Wago-3 connectors

Download the PDF for more information.
