Universal Connection Kit 1

This is a service product. You can order these products more affordably with the Actuators, such as the Shelly Plus 1 or Plus 1 Mini Gen3.

Mounting the smart in-wall switches and dimmers behind your switch can be quite challenging, especially if you have limited space in your mounting box and the wiring is stiff. Additionally, the screw terminals on these modules are often only suitable for a maximum of 1.5mm², making it difficult to fit your standard 2.5mm² wire.

Make installation easier with this Universal Connection Kit 1 from Home2Link. This kit includes flexible installation wire with insulated Klauke ferrules and foldable Wago connectors for a solid connection. We only use high-quality materials, such as harmonized Lapp Cable H07V2-K 90°C installation wire, and Klauke insulated ferrules according to DIN standards.

Another advantage is that you don’t have to buy 10m of cable in different colors and 10 connectors separately.

WARNING: 230V is dangerous and can be fatal! Always turn off the main switch when working on electrical systems. If you are not knowledgeable about electricity, leave it to a certified electrician.
The maximum load (including for your switch) is 10 Amps, max 2300 Watts. Your wall switch may have a lower max load capacity.

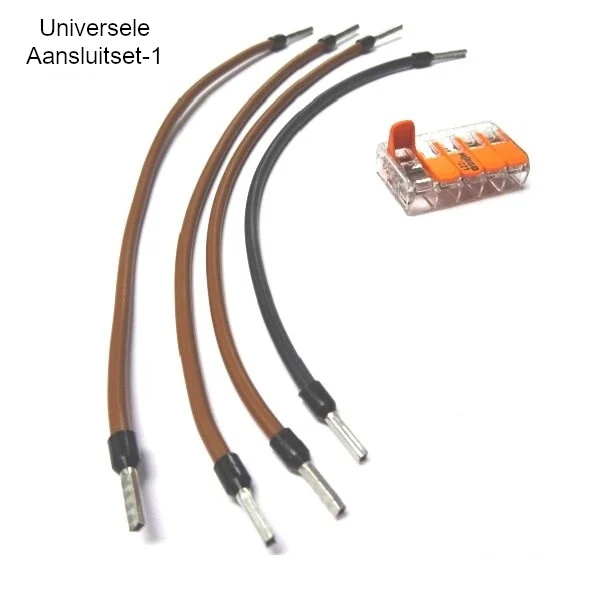

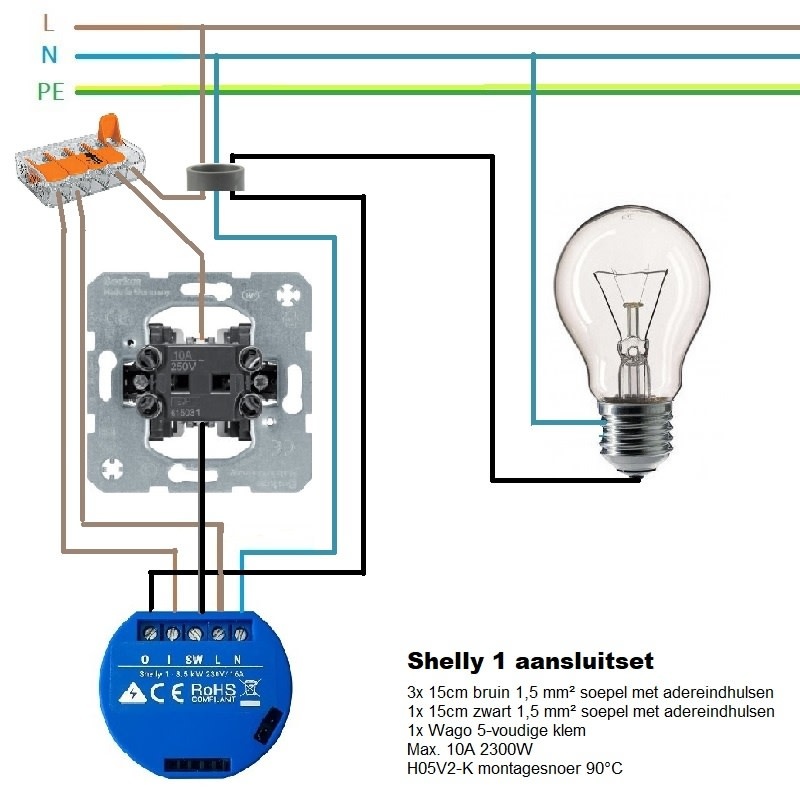

The Universal Connection Kit 1, ideal for the Shelly Plus 1 (mini) or FIBARO In-Wall Relay 1x2.5kW, includes:

- 3x 15cm Brown 1.5mm²
- 1x 15cm Black 1.5mm²
- 1x Wago 5 connector

Download the PDF for more information.

DOWNLOADS

Universal Connection Kit Information (NL)
