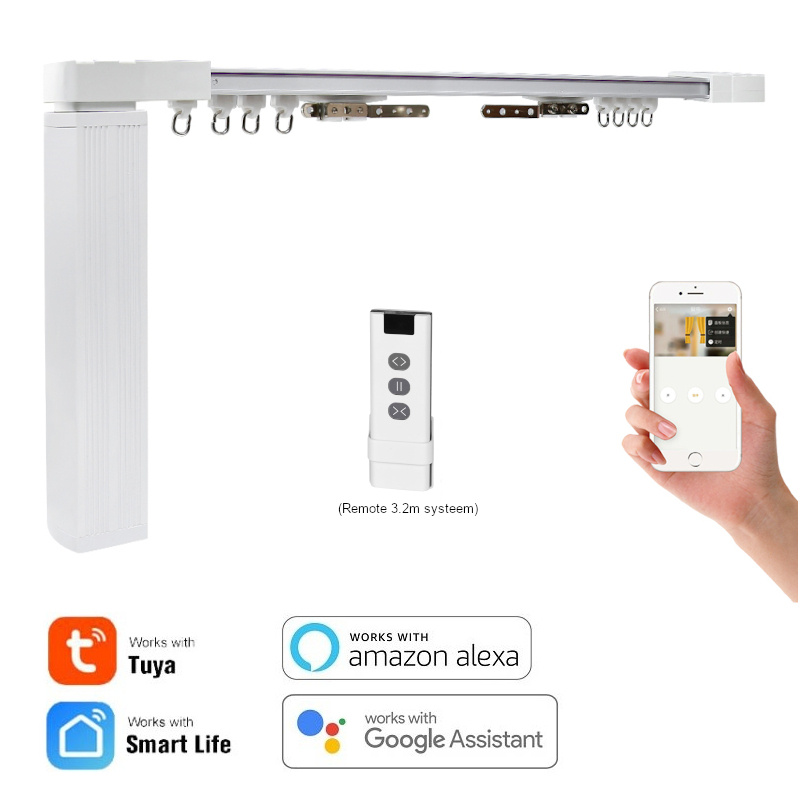

Tuya Electric Curtain Track System
- CHOOSE your delivery day, time and location
- EASY return within 14 days
- FREE ADVICE call +31 85 029 05 78
- FREE SHIPPING above € 75,00
- Soon available, PRE-ORDER NOW
- Pay afterwards with Afterpay/Riverty
This innovative Tuya system from the brand BINTHEN makes your curtains whisper-quiet electric and can be controlled with the app or the included remote control up to a length of 8.2m. You can then automate the curtains with the Tuya App or Smart Life App using smart scenes. Or use Google Assistant: "Hey Google, close the curtains." How cool is that?
NOTE: For the ZigBee variant, you need a compatible Tuya ZigBee hub!
For the Tuya WiFi variant, you can also choose the system with the Tuya WiFi module.
Wake up with the sunrise or automatically open your electric curtains 5 minutes before the alarm goes off. This way, you start your day refreshed. Activate a Vacation Mode when you're away to keep burglars in the dark. Have your curtains automatically close on time to save energy in winter or keep the heat out in summer. The possibilities are endless, and the rubber band makes the electric curtain system very quiet.
How does it work?
The smart electric curtain system consists of all the components needed to make your curtains smart. If you can install curtain rails and connect a wall switch, you can handle this too. The system comes with various rail lengths, allowing you to assemble your desired length. Mount the brackets on the ceiling or wall (separate brackets available), connect the rail lengths with the rail connectors, install the rubber band, end caps, and runners, and clip the system onto the brackets. Then clip the motor onto the system and connect it to the Tuya or Smart Life app. Don’t be confused by the manual and RJ11 connector, as you don’t need those.
Depending on the length of your curtains, choose the system up to 3.2m, 5.2m, or 8.2m. The system offers options for center, left, or right closing. And of course, the motor is discreetly hidden behind the curtain. If you have a Tuya ZigBee hub/gateway, choose the Tuya ZigBee variant. There is also an option for S-wave curtains with separately available S-Wave runners and carriers.
Works with:
What’s in the box?
All components needed to make your curtains smart, such as:
- Aluminum rails per meter, always including 1x500mm, 2x200mm, and 1x100mm
- Ceiling brackets and rail connectors (optional wall brackets available)
- Rubber guide band for the rails (very quiet)
- 2 end pieces (Gear-Boxes), with one end piece for mounting the motor on the left or right
- Curtain hooks (Carriers and Runners)
- Curtain motor with approx. 1m connection cable with plug, white
- 1-channel RF 433 MHz remote control
FEATURES
Advantages and Disadvantages
 |
Powerful electric curtain motor (1.2Nm) |
|
Voltage 100-240VAC, 40W, up to 50kg |
|
Works via WiFi or ZigBee with Tuya or Smart Life App |
|
Aluminum rail system up to 3.2m, 5.2m, or 8.2m |
|
Silent system due to Rubber Rail band |
|
Installation materials included |
|
Center, Left, or Right closing |
|
Automation scenes via the App |
|
Voice control with Google Home or Alexa |
|
Includes 1-channel RF 433 MHz remote control |
|
90° corners available |
|
(Double) wall brackets available |
 |
Requires some skill for installation |
|
Center curtain must be exactly centered |
|
Tuya ZigBee version requires ZigBee Tuya Hub |
DOWNLOADS
 |
Electric Curtain Rail System Manual (ENG) |
|
BINTHEN Curtain Track System Manual (ENG) |
Installation Video
