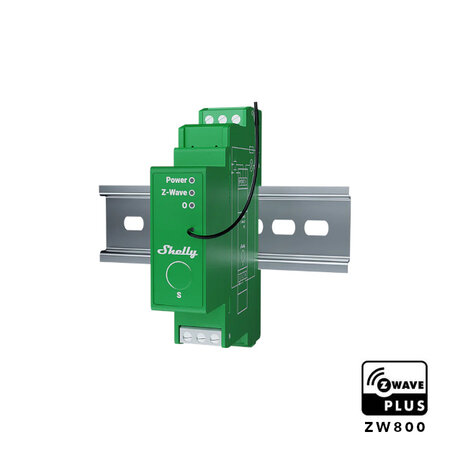

Shelly Wave Pro Dimmer 1PM

Finally, the Shelly Wave Pro Dimmer 1PM for your electrical panel. The Shelly Wave Pro Dimmer 1PM is a smart, professional Z-wave trailing-edge dimmer for one lighting group, with power monitoring, designed to be installed on the DIN rail in your electrical panel. Now, Shelly’s range is truly complete for making all your lighting smart. There is also a Shelly Wave Pro Dimmer 2PM for two lighting groups.

Shelly Wave Pro Dimmer 1PM

Turn on/off and dim your lights wirelessly with your smartphone from anywhere in the world. The great thing is, you can also connect a wall switch. Easily create smart scenes (scenarios) and set timers in your Z-wave Smart Home System for home automation. For example, automatically turn on your lights at sunset or dim them for nighttime between 11:00 PM and 6:00 AM. Voice control with Google Assistant or Amazon Alexa is also possible; "Hey Google, set the table lamp to 40%."

The Shelly Z-wave Pro Dimmer 1PM is a smart Z-wave dimmer for your Smart Home System, installed on the DIN rail in your electrical panel. The Dimmer features power monitoring, a night mode for dimmed lighting at night, min./max. settings, automatic calibration, and a connection for a wall switch. We recommend using a push-button switch with 'momentary contact.' A click turns the light on/off, and holding it dims. It also acts as a Z-wave repeater for a Z-wave Mesh Network. The SmartStart feature ensures easy pairing with your Z-wave hub. The Z-wave Plus 800 chip provides better range, up to 40m, with S2 security.

NOTE: Requires a compatible Z-wave-certified Hub/Gateway.

Also works with

_{* Apple HomeKit requires a Homey Pro or HA linked to the Apple Home App
** SmartThings requires Shelly wave Edge Driver}

Install the Shelly Wave Pro Dimmer and pair it with your Z-wave hub via SmartStart. It couldn't be easier! The Z-wave range indoors is approximately 40m.

FEATURES

_{Pros and Cons}

	Operates via Z-wave Plus with Z-wave Hub/Gateway
	Secure S2 AES128 Encryption
	Z-wave Plus 800 chip
	Works as a repeater in the Z-wave mesh network
	Extended range, approximately 40m indoors
	110-240VAC
	Dimmer type trailing edge
	Power metering
	Max. 200W
	Protected against overheating and overloading
	Flame retardant (V-0 rating)
	Works with Siri, Google Home, or Alexa
	Compatible with switch, pulse switch, and hotel switch
	Pulse switch for dimming
	Scene activation via App
	OTA firmware updates
	Max. load adjustable
	5-Year Carry-in Warranty
	No leading edge dimming
	Does not work with rotary dimmer

DOWNLOADS

	Shelly Wave Pro Dimmer 1PM Manual (MULTI/ENG)
	Knowledge base Shelly Wave Pro Dimmer 1PM
