Shelly Dimmer 0/1-10V PM Gen3

The Shelly Gen3 Dimmer 0-10V or 1-10V is a smart, professional WiFi-built-in dimmer for controlling a 0-10V or 1-10V driver (lighting, motors, valves, etc.), with power metering.

Shelly Dimmer 0/1-10V PM Gen3

Turn on/off and dim your lights wirelessly with your smartphone, control your motors or valves from anywhere in the world. And the best part is, you can also connect a wall switch. Easily create smart scenes and set timers in the free App for home automation. For example, automatically turn on your lights at sunset or dim your lighting at night between 11:00 PM-6:00 AM. Voice control is also possible with Siri (requires Siri shortcuts, flashing, or Homebridge), Google Assistant, or Amazon Alexa; "Hey Google, set the table lamp to 40%".

The Shelly Gen3 Dimmer 0-10V or 1-10V is a smart WiFi dimmer for your Smart Home System. The Dimmer has built-in power metering, a night mode for dimmed light at night, automatic calibration, and a wall switch connection. We recommend using a push button with 'make-contact' for this. Then click to turn on/off, and hold to dim. Also works as a WiFi extender, Bluetooth Gateway, supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates.

Please note: the Shelly Dimmer 0/1-10V does not work with 230V standard dimmable bulbs or drivers/trafo's!
The dimmer is of the Sourcing type. Therefore, the 0-10VDC or 1-10VDC voltage output can be regulated by dimming. Also the 230VAC output is switchable, to switch on/off your driver for example. There is also the Shelly Plus Dimmer 0-10V, which is of the Sinking type.

Shelly has its own free App, which allows you to easily and affordably set up a Smart Home System without the cost of a Gateway/Hub. The open-source nature ensures that you can integrate the Shelly Dimmer with virtually any home automation system.

Also works with

_{* FIBARO Home Center 2, 3 or limited functionality with the Lite via a Virtual Device/Quick App
** Apple HomeKit requires a Matterbridge or the announced Matter update}

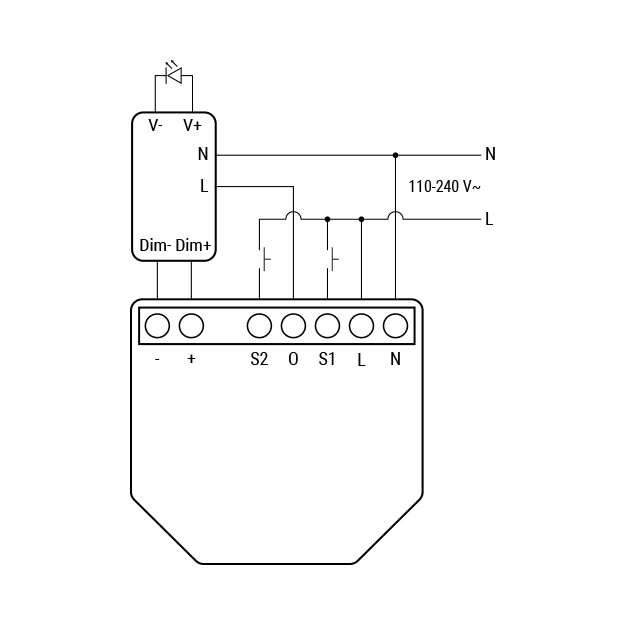

Install the Shelly Gen3 Dimmer according to the manual, connect via WiFi or Bluetooth through the free Shelly App, and link the module. It couldn’t be easier! The Shelly Dimmer works with 0-10V or 1-10V drivers. It also supports 110-240VAC for driver on/off control.

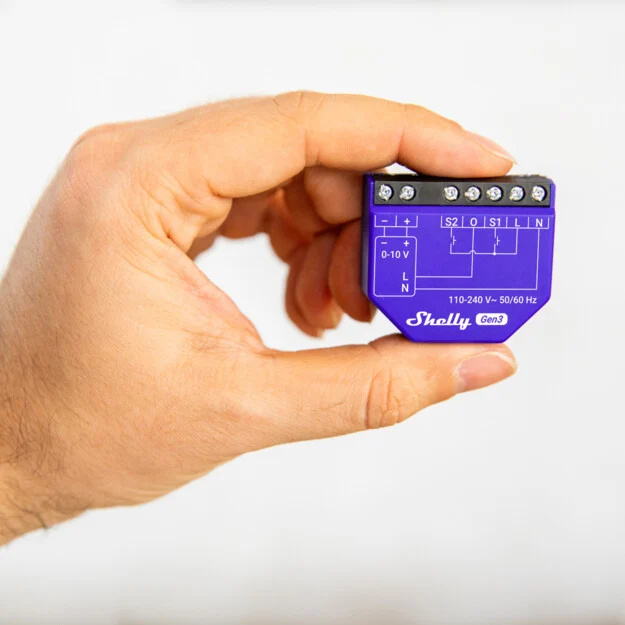

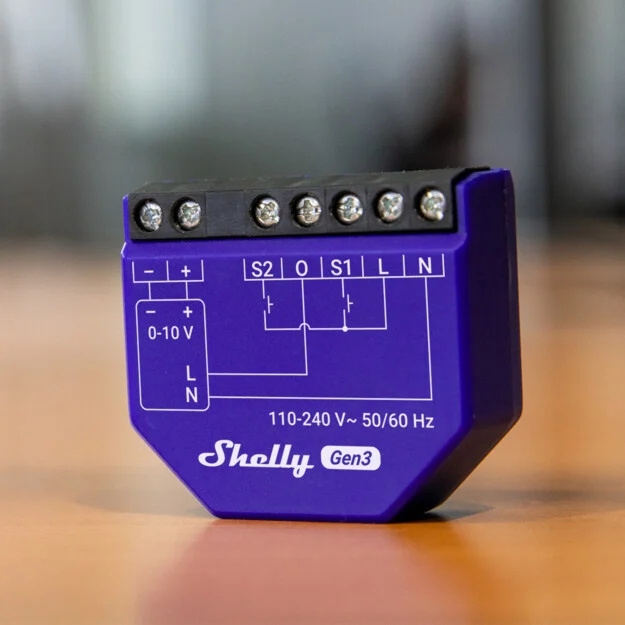

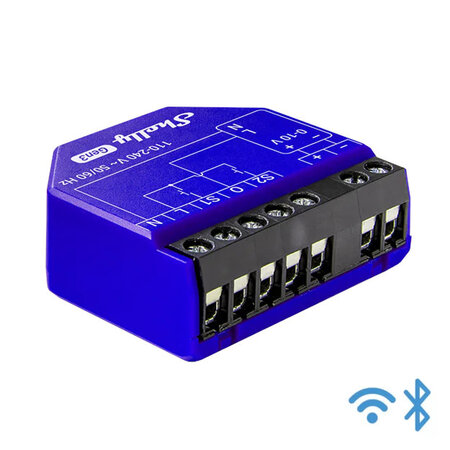

The Shelly Dimmer 0/1-10V PM Gen3 is equipped with a Shelly ESP32 C3 chip with 8MB flash memory. The 8MB provides extra space for updates and a potential Matter firmware update in the future. Additionally, it includes Bluetooth for easy WiFi connection, overheating protection, improved security with MQTT + SSL, MQTT with Cloud support, and scripting options. The terminals (screw connections) have also been improved and are now suitable for up to 2.5mm² wire, which was sometimes an issue with the previous version and the 2.5mm² wire behind the wall switch.

FEATURES

Advantages and disadvantages

	Open source
	Works stand-alone via
	Built-in web server
	Access Point and Client Mode
	Supports HTTP and/or UDP
	110-240VAC; max. 16A
	Dimmer type 0-10V or 1-10V
	For controlling lighting, motors, or valves, for example
	Power metering
	Protected against overheating and overloading
	Compatible with Shelly Plus Add-On
	"Night mode": automatically dims lights at night
	Free Android or iOS App
	Free Shelly Cloud
	Works with MQTT
	Works with Siri, Google Home, or Alexa
	Works with switch, pulse switch, hotel switch
	Pulse switch for dimming
	Scene activation via App
	Shelly ESP32 C3 chip with 8MB flash memory
	Wi-Fi Range Extender & BLE Gateway
	Supports KNXnet
	OTA firmware updates
	Max. load adjustable
	2-Year Carry-in Warranty
	Does not work with rotary dimmer
	Requires compatible driver

DOWNLOADS

Shelly Dimmer 0/1-10V PM Gen3 Manual (MULTI/ENG)
