Shelly 1PM Gen4

The new Shelly 1PM Gen4 is a small Matter, ZigBee, WiFi switch that allows you to easily switch and automate your lights or devices wirelessly. Also, the 4th generation Shelly 1PM has the new ESP-Shelly-C68F chip with 8MB flash memory with also current measurement to monitor and record power consumption. The open source and multi-protocol ensures that you can integrate Shelly 1PM Gen4 with almost any home automation system. But Shelly also has its own free App that allows you to easily and inexpensively set up a Smart Home System without the cost of a Gateway/Hub. Works with Apple HomeKit

Shelly 1PM Gen4 with Matter and ZigBee

You connect this smart switch and real-time power meter to your home network via Matter, ZigBee, or Wifi, and plug into the wall switch of the lamp or device you want to wirelessly control, automate and monitor. The Shelly 1PM Gen4 supports 110-240VAC, 24-30VDC, max 16A/3680W, and has the new and proprietary ESP-Shelly-C68F chip with 8MB of flash memory built in. That's double compared to the Gen2 mini with ESP32 chip. Note; the Shelly 1PM Gen4 also requires a blue neutral wire, which is sometimes missing behind the wall switch!
Also the 1PM Gen4 works as a WiFi amplifier, Bluetooth Gateway, supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates.

We also have the Shelly 1 Gen4 with potential free relay (dry contact), or the Shelly 1PM Mini Gen4 8A/1840W.

Works with

FEATURES

Pros and cons

	Open source
	Works stand-alone via WiFi 2.4 Ghz
	Matter certified
	ZigBee 802.15.4
	Bluetooth 5.0 for easy connection to WiFi
	WiFi amplifier and Bluetooth gateway
	Built-in Web server
	Access Point and Client Mode
	Supports HTTP and/or UDP
	Power Meter with Relay Switch

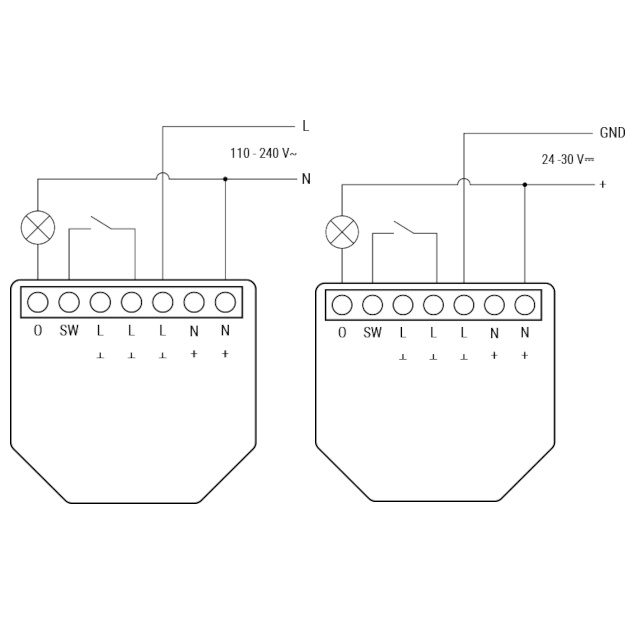

	Power supply 110-240VAC, 24-30VDC
	Max 16A/3680W total
	Over-voltage protection
	Max power protection
	Free Android of IOS App
	Free Shelly cloud
	Works with MQTT
	Easy installation
	Scene activation via App
	ESP-Shelly-C38F with 8MB flash/debug chip
	OTA frimware updates
	Power metering, free cloud storage
	2 Year Carry-in warranty
	Requires a blue neutral wire

DOWNLOADS

	Shelly 1PM Gen4 Manual (ENG-Multi)
	Shelly add via Webbrowser (NL)
	Shelly REST API (ENG)

Shelly finder windows
Shelly finder Mac OSX
