Shelly 1 Mini Gen4
- CHOOSE your delivery day, time and location
- EASY return within 14 days
- FREE ADVICE call +31 85 029 05 78
- FREE SHIPPING above € 75,00
- Ordered till 5PM SHIPPED TODAY
- Pay afterwards with Afterpay/Riverty

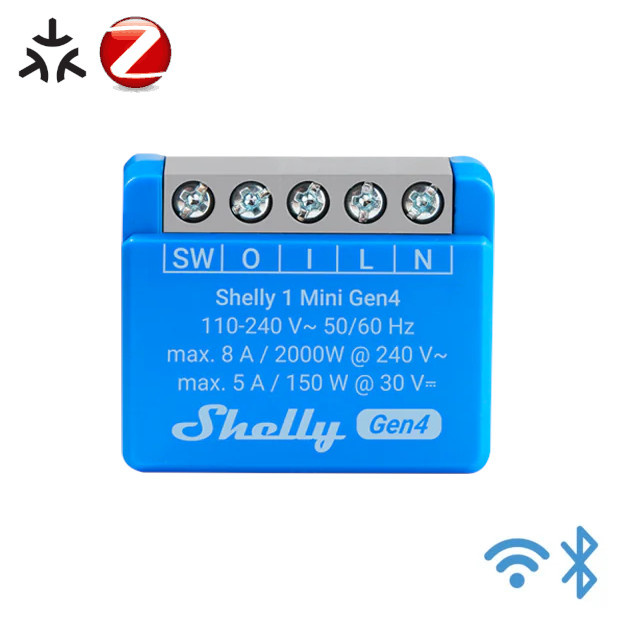

The new Shelly 1 Mini Gen4 is a super small Matter, ZigBee, WiFi switch that allows you to easily switch and automate your lights or devices wirelessly. Also, the 4th generation Shelly 1 mini has a Dry Contact and the new ESP-Shelly-C68F chip with 8MB flash memory. The open source and multi-protocol ensures that you can integrate Shelly 1 Mini Gen4 with almost any home automation system. But Shelly also has its own free App that allows you to easily and inexpensively set up a Smart Home System without the cost of a Gateway/Hub. Works with Apple HomeKit
Shelly 1 Mini Gen4 with Matter and ZigBee

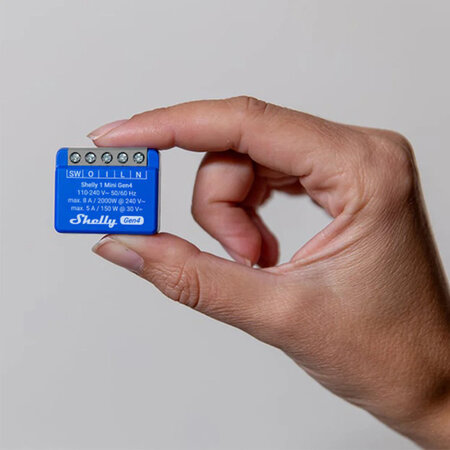

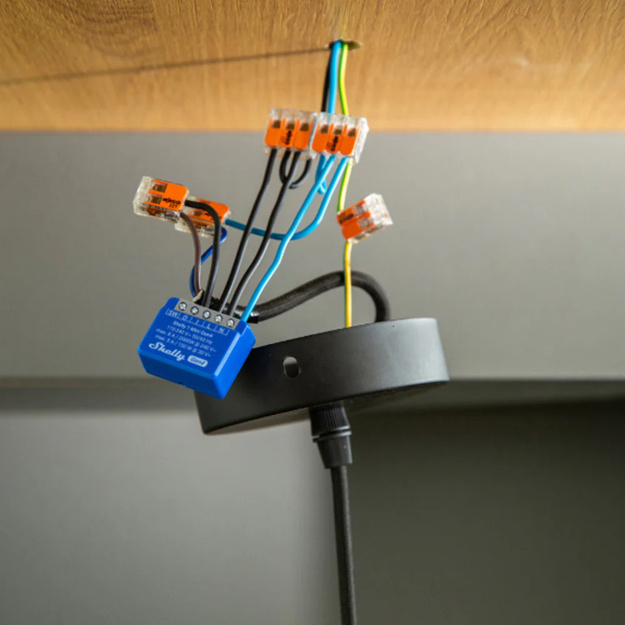

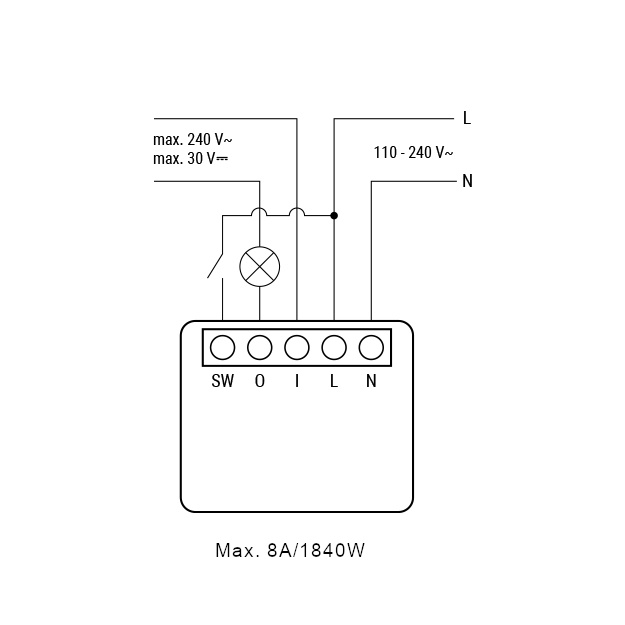

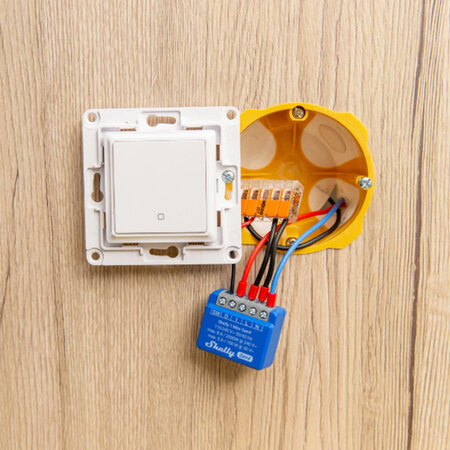

Sometimes you just have limited space behind your wall switch or outlet. The Shelly 1 Mini Gen4 is super small, and fits just about anywhere. You connect this smart switch to your home network via Matter, ZigBee, or Wifi, and plug into the wall switch of the lamp or device you want to wirelessly control, automate and monitor. The Shelly 1 mini Gen4 supports 110-240VAC, max 8A/1840W, and has the new and proprietary ESP-Shelly-C68F chip with 8MB of flash memory built in. That's double compared to the Gen2 mini with ESP32 chip. Note; the Shelly 1 mini Gen4 also requires a blue neutral wire, which is sometimes missing behind the wall switch!
Also the 1 Mini Gen4 works as a WiFi amplifier, Bluetooth Gateway, supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates.
We also have the Shelly 1PM Mini Gen4 with Power Metering, or the Shelly 1 Gen4 16A/3680W.
Works with
FEATURES
Pros and cons
 |
Open source |
|
Works stand-alone via WiFi 2.4 Ghz |
|
Matter certified |
|
ZigBee 802.15.4 |
|
Bluetooth 5.0 for easy connection to WiFi |
|
WiFi amplifier and Bluetooth gateway |
|
Built-in Web server |
|
Access Point and Client Mode |
|
Supports HTTP and/or UDP |
|
Power Meter with Relay Switch |
|
Power supply 110-240VAC |
|
Max 8A/1840W total |
|
Over-voltage protection |
|
Max power protection |
|
Free Android of IOS App |
|
Free Shelly cloud |
|
Works with MQTT |
|
Easy installation |
|
Scene activation via App |
|
ESP-Shelly-C38F with 8MB flash/debug chip |
|
OTA frimware updates |
|
Dry Contact, free cloud storage |
|
2 Year Carry-in warranty |
 |
Requires a blue neutral wire |
DOWNLOADS
 |
Shelly 1 Mini Gen4 Manual (ENG-Multi) |
|
Shelly add via Webbrowser (NL) |
|
Shelly REST API (ENG) |
| Voltage: | |
| Power: | |
| Usage: | |
| Protocol: | |
| Dimension: |
